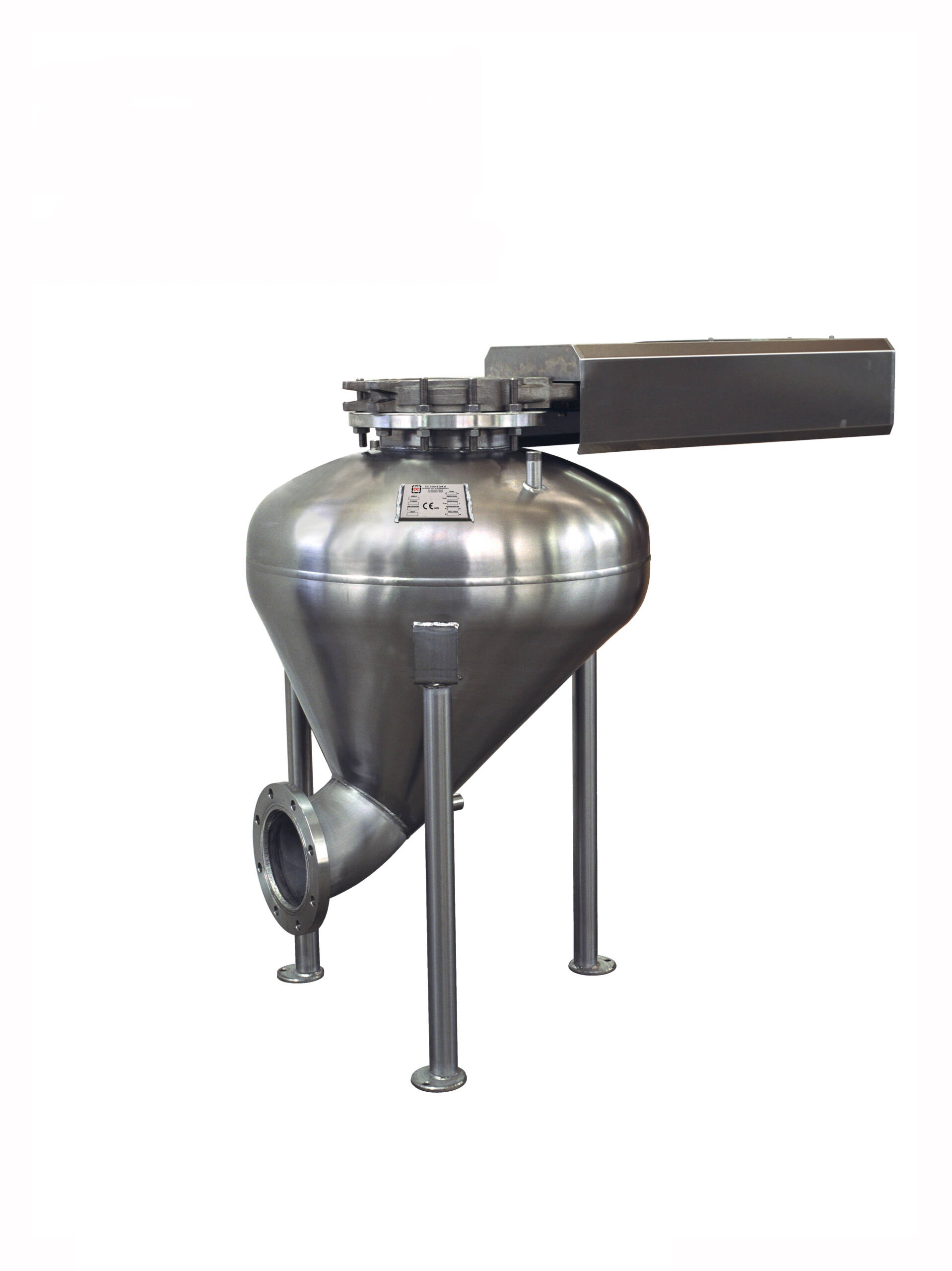

It is made entirely of AISI 304 stainless steel.It stands on three supporting feet. The work cycle is entirely automatic, or automatic with manual start. The machine has been built in compliance with Directive 97/23/EC (P.E.D.).
Complete with:
- guillotine valve with pneumatic closing control, guillotine in AISI 304 DN 300 stainless steel
- Electro-pneumatic control panel with low tension 24 V push-buttons. dim. 1000x750x250.
Technical features:
- Dimensions: width 800 mm, length 1680 mm, height 1094 mm
- Loading chute: DN 300.
- Unloading chute: DN 200.
- Electricity consumption: kW 0,15 V 220 2 phase.
- Maximum operating pressure: 6 bars.
